Low Voltage Motors
IEC motors
| Type of protection: | Safe Area |
| Power range: | 0.06kW to 2000kW |
| frame size: | 56 – 710 |
| number of poles: | 2,4, 6, 8 and more |
| ingress protection: | IP 23, IP 55 and higher |
| thermical class: | 155 (F), 180 (H) |
| method of cooling: | TEFC, ODP |
IEC system motors
| type of protection: | Safe Area |
| power range: | 500 kW to 4800kW |
| frame size: | 400 – 710 |
| number of poles: | 2,4, 6, 8 and more |
| ingress protection: | IP 23, IP 55 and higher |
| thermical class: | 155 (F), 180 (H) |
| method of cooling: | TEFC, CACA, CACW |
NEMA motors
| type of protection: | Safe Area |
| frame size: | 56 – 586 |
| number of poles: | 2, 4, 6, 8 |
| ingress protection: | IP 55 |
| temperature class: | 155 (F), 180 (H) |
| method of cooling: | TEFC |
3-phase induction (asynchronous) motors 2-pole / 4-pole
| type of protection: | Safe Area / Ex e, Ex n, EX p, Ex d, Ex de |
| power range: | up to 25 MW |
| frame size: | up to 1700 |
| number of poles: | all |
| ingress protection: | IP 23, IP 55 and higher |
| temperature class: | 155 (F), 180 (H) |
| method of cooling: | Open Vent, TEFC, CACA, CACW, TEWJ |
High Speed Machines
| type of protection: | Safe Area |
| power range: | 50 – 1.000 kW |
| frame size: | 180 – 400 |
| number of poles: | bis 15.000 U/min |
| ingress protection: | IP 23 + IP 55 |
| temperature class: | 150 (F), 180 (H) |
| method of cooling: | ODP, CACW |

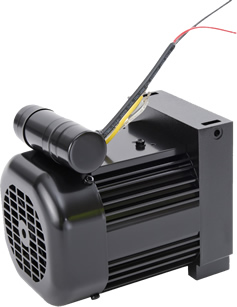

Single phase motors
| type of protection: | Safe Area |
| power range: | 0,07 – 2,2 kW |
| frame size: | 56 – 100 |
| number of poles: | 4 |
| ingress protection: | IP 55 |
| temperature class: | F / H |
| method of cooling: | TEFC |
Slip ring motors
| type of protection: | Safe Area |
| power range: | up to 1100kW |
| frame size: | 160-560 |
| number of poles: | 2, 4, 6, 8 and more |
| ingress protection: | IP 23, IP 55 |
| temperature class: | F |
| method of cooling: | TEFC / CACA / CACW / ODP |
Motors for hazardous atmospheres
| type of protection: | Ex e, Ex n, Ex d, Ex de |
| power range: | 0.06kW to 2000kW |
| frame size: | 63-560 |
| number of poles: | 2, 4, 6, 8 and more |
| ingress protection: | IP 55 and higher |
| temperature class: | 155 (F), 180 (H) |
| method of cooling: | TEFC |
Home appliance motors
| type of protection: | Safe |
| power range: | 0.01kW to 5.5kW |
| frame size: | 45 – 112 |
| number of poles: | 4 |
| ingress protection: | IP 55 |
| temperature class: | F |
| method of cooling: | N/A |
High Voltage Motors
3-phase induction (asynchronous) motors 2-pole / 4-pole
| type of protection: | Safe Area, Ex d, Ex n, Ex p |
| power range: | 20kW to 25MW |
| frame size: | 225-1000 and above |
| number of poles: | 2, 4 |
| ingress protection: | up to 56 |
| temperature class: | F / H |
| method of cooling: | TEFC, CACA, CACW, Open vent, TEWJ |
Synchronous motors
| type of protection: | on request |
| power range: | up to 25MW |
| frame size: | up to 1400 |
| number of poles: | to suit |
| ingress protection: | IP 23, IP 55 |
| temperature class: | 155 (F), 180 (H) |
| method of cooling: | CACA, CACW and special cooling |
Slip ring motors
| type of protection: | Safe Area |
| power range: | up to 13.2MW |
| frame size: | 355 to 1120 |
| number of poles: | 2, 4, 6 and more |
| ingress protection: | IP 23, IP 55 |
| temperature class: | 155 (F) |
| method of cooling: | CACA, CACW, ODP |
Motors for hazardous atmospheres
| type of protection: | Ex e, Ex n, Ex p, Ex d, Ex de |
| power range: | up to 25MW |
| frame size: | up to 1700 |
| number of poles: | all |
| ingress protection: | IP 55 and higher |
| temperature class: | 155 (F), 180 (H) |
| method of cooling: | TEFC, TEWJC, CACW |
Generators
Asynchronous generators
| type of protection: | Safe Area |
| power range: | up to 10MW |
| frame size: | up to 1000 |
| number of poles: | 2, 4, 6, 8 and more |
| ingress protection: | IP 23, IP 55 |
| temperature class: | 155 (F) |
| method of cooling: | TEFC / TEWJC / CACW / CACA / ODP |
Synchronous generators
| type of protection: | Safe Area |
| power range: | up to 10MW |
| frame size: | up to 1700 |
| number of poles: | 4 |
| ingress protection: | up to 56 |
| temperature class: | F |
| method of cooling: | CACA / CACW / TEFC |
Hydro generator
| type of protection: | Safe Area |
| power range: | up to 30 MVA |
| number of poles: | 4-24 |
| ingress protection: | IP 56 |
| temperature class: | F |
| method of cooling: | on demand |
Wind / wave energy solutions
| type of protection: | Safe Area |
| power range: | up to 2000 KW |
| frame size: | up to 900 |
| number of poles: | 4-20 |
| ingress protection: | 55 or higher for sub-sea |
| temperature class: | 155 (F), 180 (H) |
| method of cooling: | CACA / CACW/ TEWJC |
Special Products
Smoke extraction motors
| type of protection: | Safe Area – 200C, 400C, 600C |
| power range: | up to 1000 kW |
| frame size: | 80-500 |
| number of poles: | 4 |
| ingress protection: | up to 56 |
| temperature class: | 155 (F), 180 (H) |
| method of cooling: | TEFC |
Semihermetic motors
| type of protection: | Safe Area |
| power range: | Special design – upon request |
| frame size: | Special design – upon request |
| ingress protection: | IP 67 |
| temperature class: | F / H |
| method of cooling: | N/A |
Motors with higher sealing
| type of protection: | Safe Area |
| power range: | Special design – upon request |
| frame size: | Special design – upon request |
| ingress protection: | IP 67 |
| temperature class: | 155 (F), 180 (H) |
| method of cooling: | N/A |
Axial airgap motors
| type of protection: | N/A |
| power range: | 0.11 to 2.2kW |
| frame size: | N/A |
| number of poles: | 4 |
| ingress protection: | N/A |
| temperature class: | F |
| method of cooling: | N/A |
Industrial DC motors (Bull Electric)
| type of protection: | Safe Area |
| power range: | 0.09 to 15kW |
| frame size: | up to 355 |
| number of poles: | 4 |
| ingress protection: | IP55 |
| temperature class: | F |
| method of cooling: | TEFC |
Overhung compressor motors
| type of protection: | Safe Area |
| power range: | up to 1MW |
| frame size: | N/A – equivalent 560 |
| number of poles: | 12,16 |
| ingress protection: | up to IP55 |
| temperature class: | F / H |
| method of cooling: | TEFC / Open ventilated |
High slip motors (5-15% NEMA)
| type of protection: | Safe Area |
| power range: | 200 – 9.000 kW |
| frame size: | 355 – 1120 |
| number of poles: | 2 – 12 |
| ingress protection: | IP55 |
| temperature class: | B |
| method of cooling: | IC01, IC511, IC611, IC81W |
| options: | IM B3, IM V1 |
Low voltage motor internals (stators / rotors)
| power range: | on request |
| frame size: | on request |
| number of poles: | on request |
| ingress protection: | on request |
| temperature class: | 155 (F) |
| method of cooling: | on request |
High voltage motor internals (stators / rotors)
| power range: | as per request |
| frame size: | N/A |
| number of poles: | any |
| ingress protection: | N/A |
| temperature class: | F / H |
| method of cooling: | N/A |
Mining motors – conveyor / shearer
| type of protection: | Ex d 1M |
| power range: | 200kW to 2MW |
| frame size: | up to 630 |
| number of poles: | 4 |
| ingress protection: | IP56 |
| temperature class: | H |
| method of cooling: | TEWJC |
More Special Products
| ยป Motors for circular saws and wood working |
| ยป Water-cooled special motors |
| ยป Exciters for permanent magnets |
| ยป Exciters for synchronous machines |
| ยป Nuclear power motors |
| ยป Military defence motors |
| ยป Built-in motors |
| ยป Motors for ethylene reactors |
| ยป Drilling motors |
System Solutions
| type of protection: | Safe area |
| power range: | up to 4MW |
| frame size: | N/A |
| number of poles: | all |
| ingress protection: | up to IP56 |
| temperature class: | F |
| method of cooling: | TEFC / TEWJC |
Suction blowers and fan systems
Suction blowers with radial and axial fan
Complete motor system including mounting, impeller and housing.
Customized solution
for aggressive environments and high ambient temperatures.
